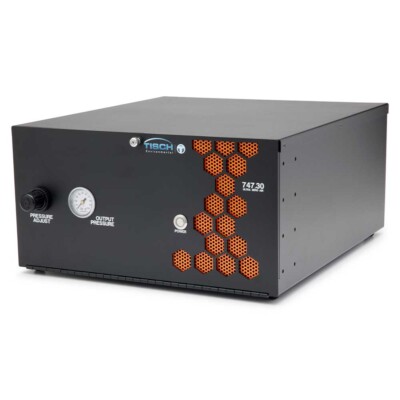

ZA-747-30 Zero Air Generator

Model: ZA-747-30
Price: 面议
分享到:

The ZA-747Series is our flagship brand that has continued to be the workhorse of the industry for over 30 years.These are the industry standard machines that have been used by thousands of institutions across the globe.





The 747 series is a compact, highly efficient ultra-zero air generator that converts ambient air to pollutant-free ultra- pure zero air. The unit employs a heated catalyst for hydrocarbon and CO removal and a pressure swing absorption system for contaminant and optional CO2 removal. The unit is provided with accessories to be used in standard rack mounting or benchtop mounting. The 747 can be used in a variety of applications for the reliable generation of ultra-zero air.



Industries and Applications

  • Automotive emission monitoring
  • Gas Chromatography
  • Oil and Natural gas
  • Aerospace
  • Laboratory instrumentation
  • Calibration and Certification
  • Environmental gaseous instrumentation
  • Ultra-zero air generation
  • Reliable generation of ultra-high purity zero air
  • Economical replacement of zero air bottles



Model

747.30

Zero Air Grade

Ultra Zero Air

Flow Rate Maximum

30 SLPM @90psi

Purification Technologies

PSA and Heated Catalytic Reactor

Purity Specifications

So2 < .5 ppb H2S < .5 ppb NO < .5 ppb NO2 < .5 ppb NH3 < .5 ppb O3 < 1 ppb CO < 1 ppb

Hydrocarbons < .5 ppb (Methane and Non-Methane)

Dewpoint

-50°C

Electrical Requirements

115V, 60Hz (Model 747-10-A1)

220-240V, 50/60Hz (Model 747-10-A2)

Warranty

2 Year

Installation

Bench top or rack mountable

Dimensions (HxWxD)

8.625” (219mm) x 19” (483mm) x 17” (432mm)

Weight

41lbs (18.6kg)
